Completed Work

Recent KB Coatings project highlights.

Examples of repair, prep, containment, and protection work where the finished result had to do more than just look better.

Merom Station fly ash silo roof after leak repair and protective coating work

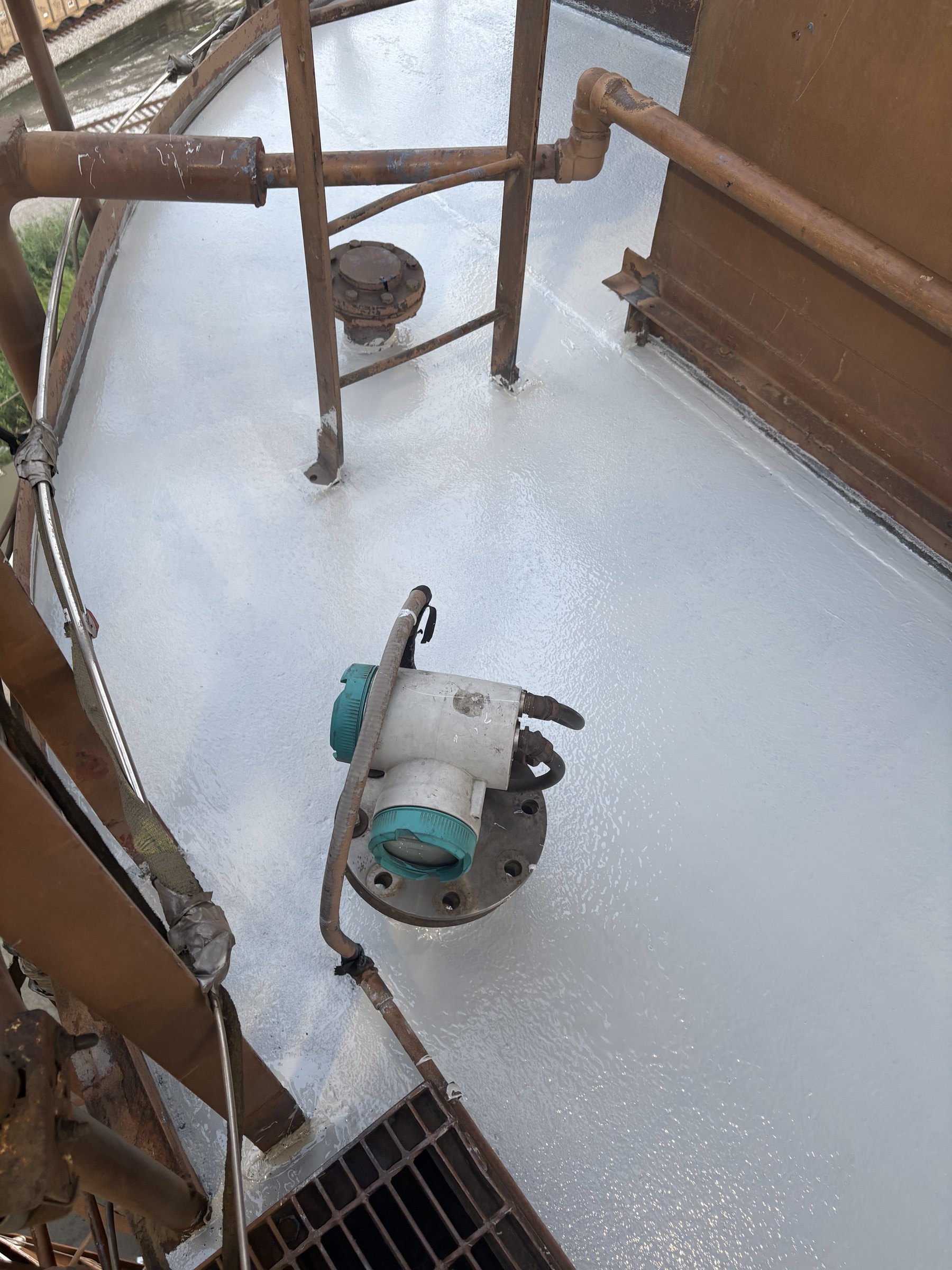

Roof detail at Merom Station showing coated penetrations and seams

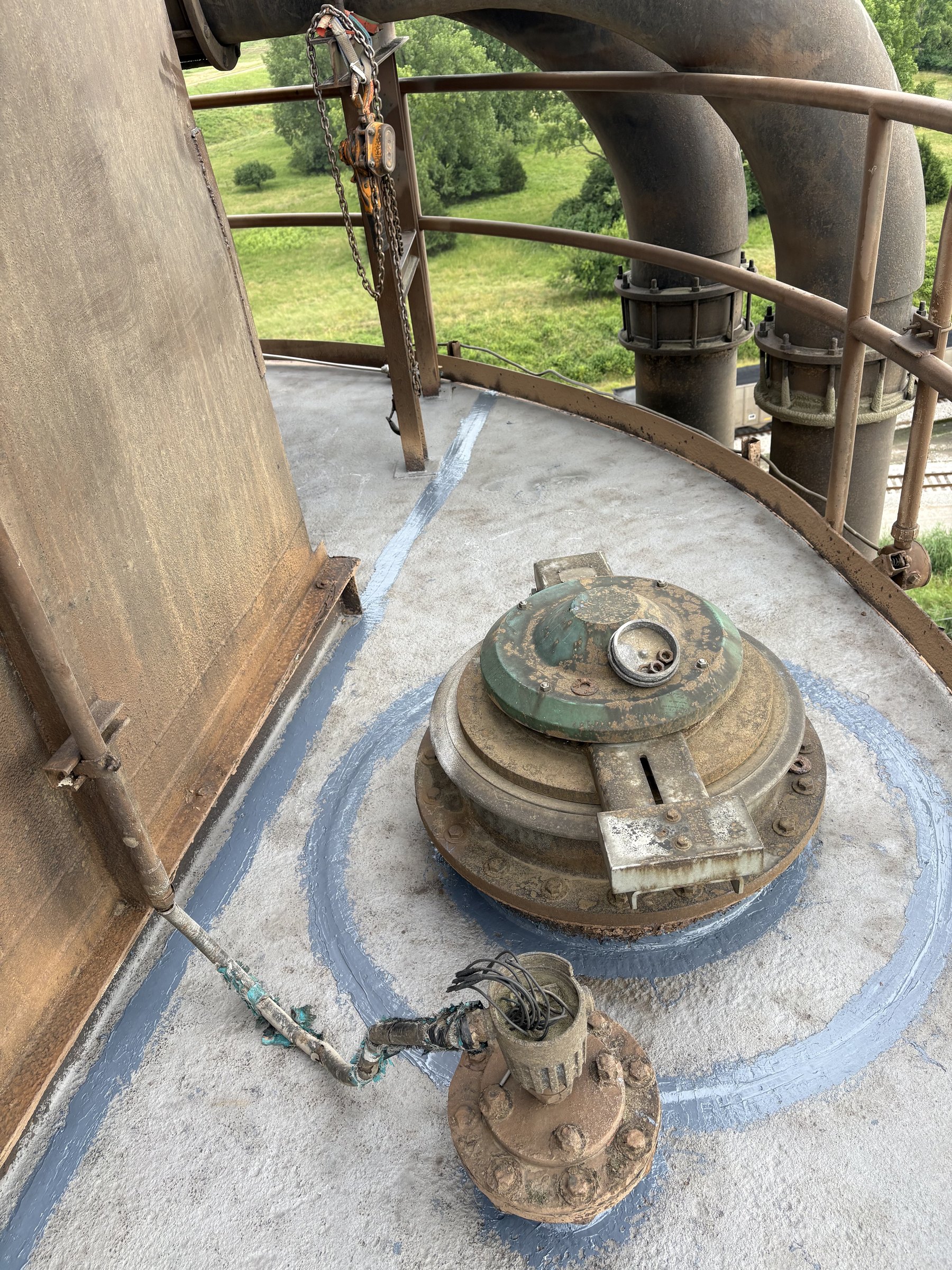

Coated roof area at Merom Station around equipment base

Merom Station | Roof Leak Repair

KB Coatings repaired a leaking fly ash silo roof and installed a seamless protective finish built for longer service life.

Project TypeIndustrial roof repair

Work AreaFly ash silo roof

GoalStop leaks and protect the surface

Challenge

Ongoing leaks were creating repeat maintenance issues.
The owner needed a longer-lasting fix than spot repairs.

Scope

Prepared the roof to sound metal.
Reinforced seams and coated the full roof surface.

Result: A sealed roof system ready for service with better long-term protection.

Hallador Power scrubber pump casing after epoxy restoration coating was installed

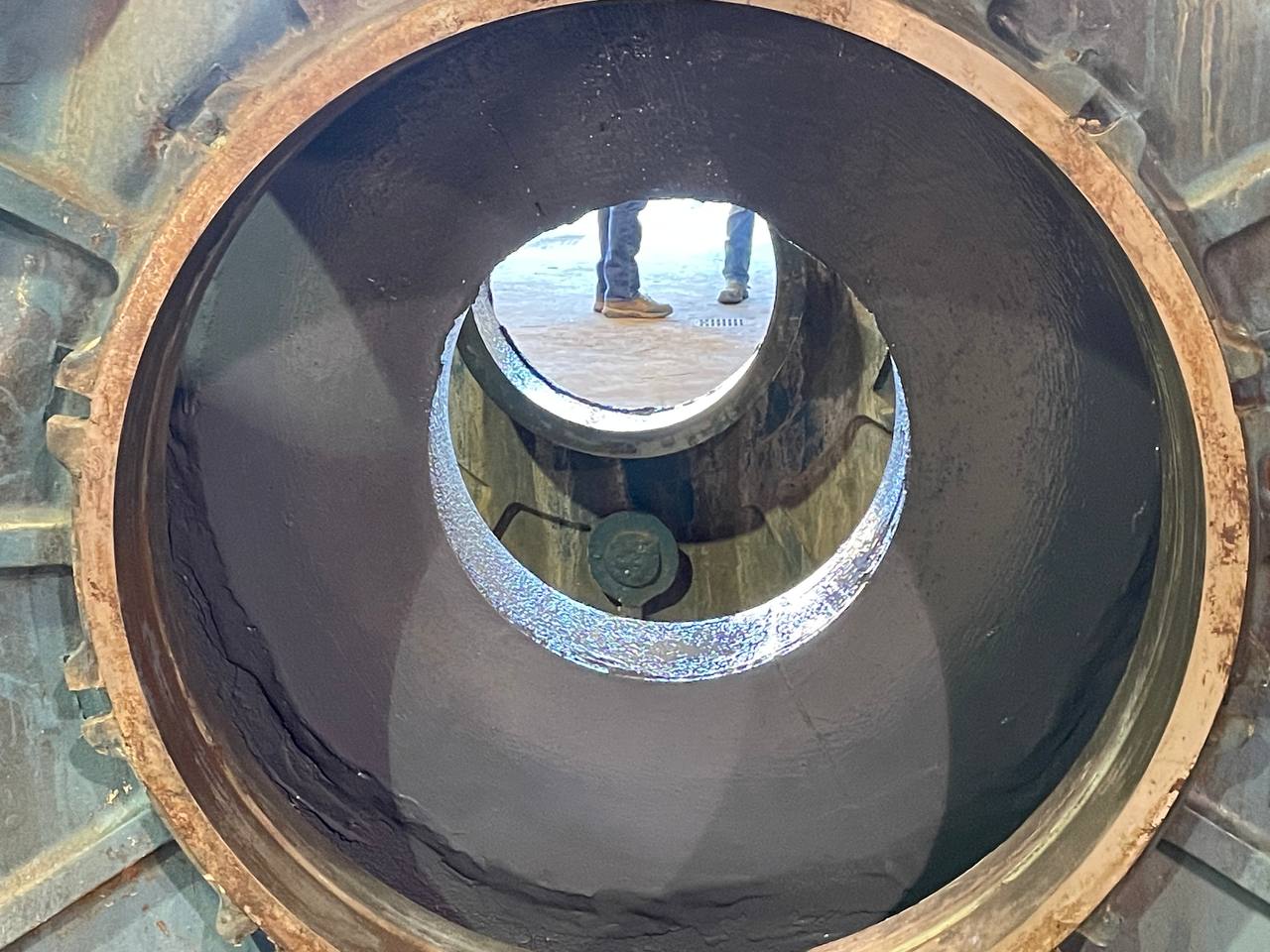

Additional finished Hallador Power pump casing after epoxy coating installation

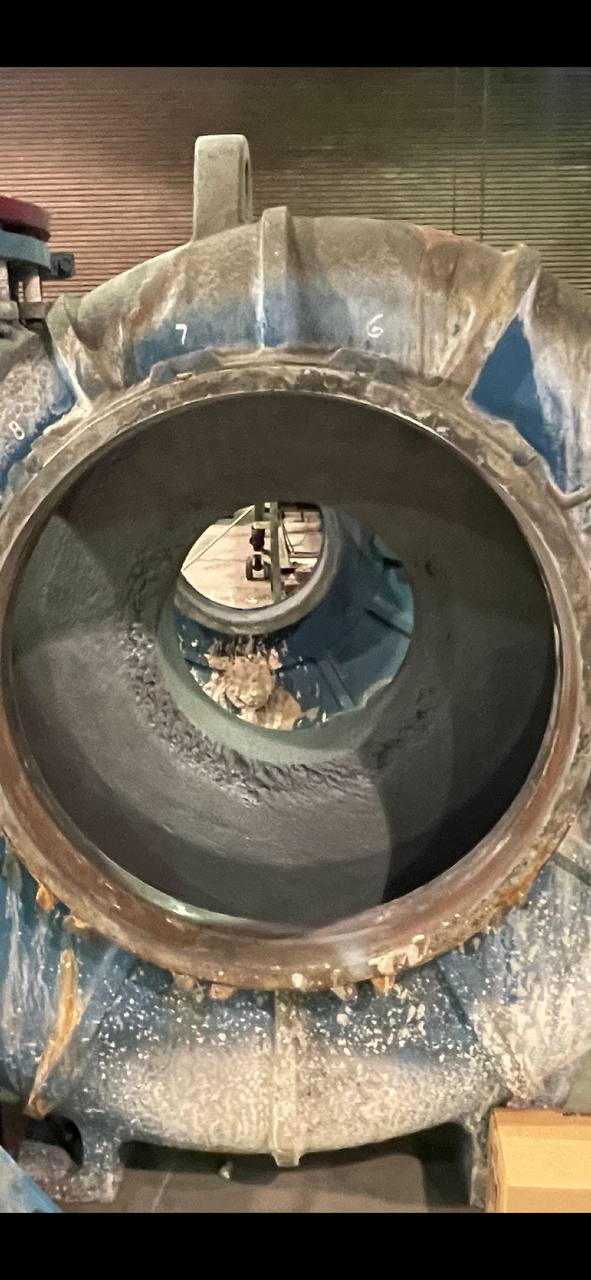

Hallador Power scrubber pump casing before epoxy repair showing wear and pitting

Hallador Power | Pump Casing Restoration

KB Coatings installed a ceramic-filled epoxy layer on worn scrubber pump casings to rebuild damaged surfaces, restore pump efficiency, and extend service life.

Project TypePump casing restoration

Work AreaSix scrubber pump casings

GoalRestore performance and avoid replacement

Challenge

The casings had severe wear and pitting from service.
The customer needed a repair option instead of full replacement.

Scope

Rebuilt worn casing surfaces with an epoxy restoration layer.
Used a ceramic-bead-filled system for restored efficiency and stronger wear resistance.

Result: The casings were restored and returned to service without the cost and delay of replacement.

Finished trench and floor resurfacing area at Liberty Steel

KB Coatings crew standing at the completed Liberty Steel floor repair area

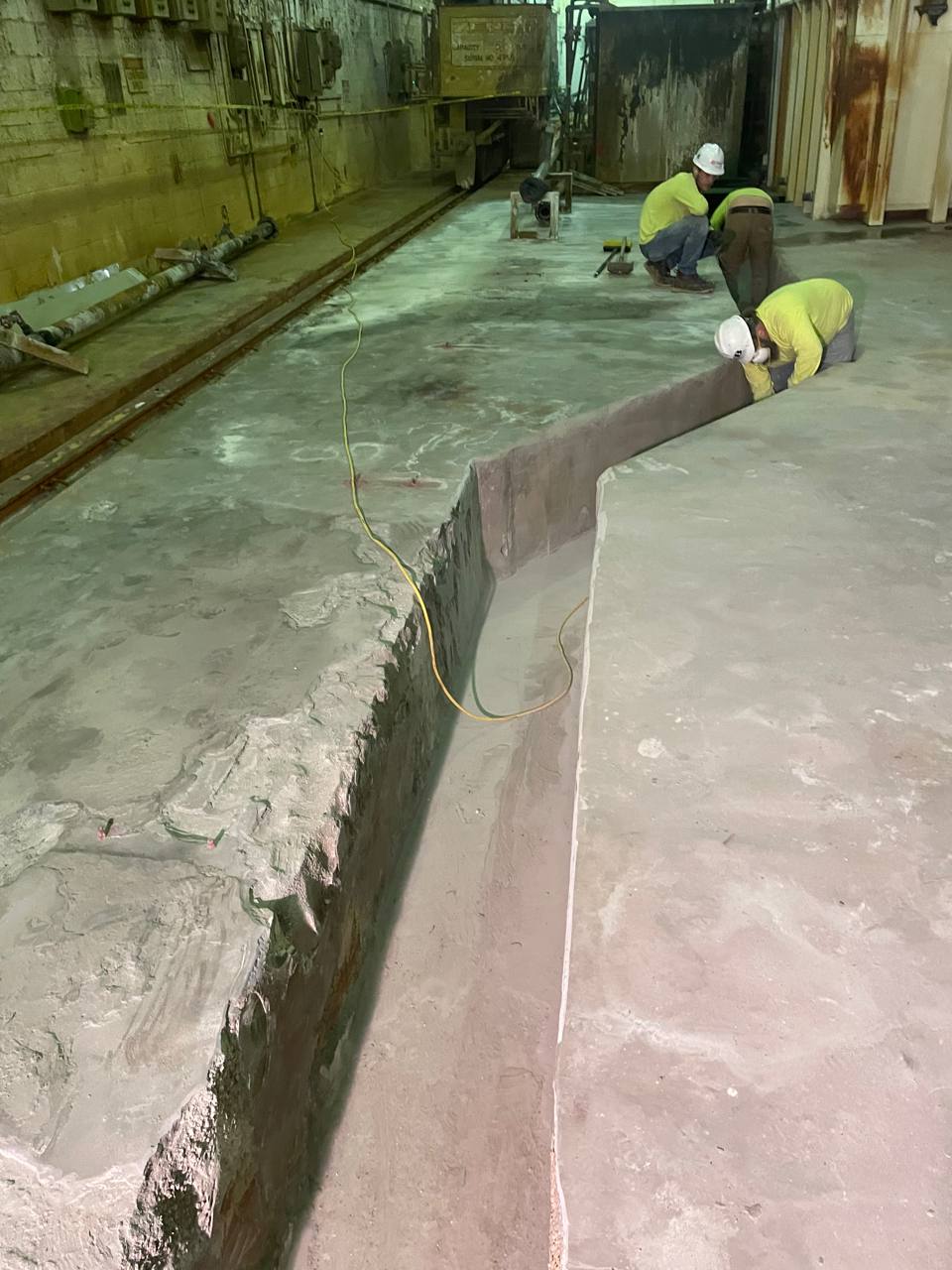

Liberty Steel trench area during prep and repair work before resurfacing

Liberty Steel | Acid Containment Repair

KB Coatings repaired an existing containment area around acid storage tanks and completed a larger resurfacing scope in an active industrial work area.

Project TypeAcid containment repair

Work AreaAcid tank containment area

ScopeExpanded to roughly 3,000 sq ft

Challenge

The existing containment area had failed and needed repair.
The system had to hold up to acid exposure in an active industrial space.

Scope

Repaired the containment area, trench, and adjacent floor sections.
Expanded into a larger resurfacing area once the job was underway.

Result: The area was rebuilt, resurfaced, and turned over ready for service.

Need details on a similar scope?

Talk through the surface condition, work area, and performance goal.

KB Coatings can review the job and help frame the right repair or coating approach for the environment.
